Fly Ash Silos for Ash Handling Plant for Power Station-II of NLC

Client: Project Details Assignment
McNally Bharat Engg. Co., Kolkata. Design of AHS for 2 x 250 MW units TPS–II Extn. Neyvelli

Preparation of Civil & structural design calculations, General arrangement, RC Detail and fabrication detail drawings of superstructure and foundation system. Major units involved are:

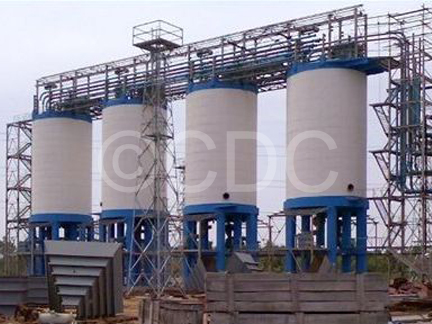

  1. RCC silo (4 nos.) ID–9M, height above GL 32.0M
  2. Compressor house complex: 50M x 22M x 10.5M
  3. Pipe rack, L=750M
  4. BA hopper (steel)
